Liv MTB Pique Advanced 2 2017

Christine Laich 22. November 201627.5-Zoll, Carbonrahmen, Disc, Hydraulic disc, Hydraulische Scheibenbremse, Liv, MTB, Scheibenbremse, SRAM GX, Trail, XC 0 Kommentare

KEINE SCHWÄCHE – SCHLIESST AUF, HASTET RUNTER. DIESES VIELSEITIGE XC TRAIL BIKE HAT EINE AFFINITÄT FÜR SPEED.

Finde Trost und Freiheit wenn deine Reifen im Schmutz aufschlagen. Gleichgewicht, Kraft und Sicherheit sind die Elemente eines perfekten Mountain Bikes. Die Liv Off-Road Palette vereint diese Kombination perfekt und macht den Trail zu deiner Spielwiese. Von den anspruchsvollsten und technischsten Singletrails bis zu gewöhnlichen Wegen gibt es ein Liv Bike für dein Abenteuer.

Kurzbeschreibung
SIZES XS, S, M, L
COLORS Carbon/Berry/Green
FRAME Advanced -Grade Composite, 120mm Maestro Suspension w/ Advanced Forged Composite Upper Rocker, ALUXX SL rear swingarm
FORK RockShox Revelation RL 27.5″, 120mm Travel, Solo Air, Boost 15x110mm, Maxle Lite, Tapered steerer
SHOCK RockShox Deluxe RT, Trunnion Mount
BRAKES SRAM Guide R [F] 160mm, [R] 160mm rotors
DRIVETRAIN SRAM GX 11-36, 2x11s
CRANKSET SRAM GX, 22/36
WHEELSET Giant XCT-1 27.5 Alloy WheelSystem, [F] Boost 15×110 [R] Boost 12×148

Preisliste 2017

Rahmengrösse bestimmen / Körperausmessung im Preis inklusive!

Haltungsschäden, Verletzungen und Energieverschleiss – das falsche Fahrrad oder ein falsch eingestelltes Fahrrad kann leicht mehr schaden als nützen. Für ein optimales, ein gesundes und effizientes Fahrradfahren muss das Zweirad optimal auf den Fahrer, die Fahrerin abgestimmt sein.
=> Inkl. Körperausmessung

Spezifikationen

Sizes	XS, S, M
Colors	Carbon/Berry/Green
Frame	Advanced -Grade Composite, 120mm Maestro Suspension w/ Advanced Forged Composite Upper Rocker, ALUXX SL rear swingarm
Fork	RockShox Revelation RL 27.5″, 120mm Travel, Solo Air, Boost 15x110mm, Maxle Lite, Tapered steerer
Shock	RockShox Deluxe RT, Trunnion Mount
Handlebar	Giant Contact Trail, 730mm
Stem	Giant Contact
Seatpost	Giant Contact SL Switch-R Trail, 30.9
Saddle	Liv Contact, Forward
Shifters	SRAM GX, 1×11 speed
Front Derailleur	SRAM GX
Rear Derailleur	SRAM GX, 11-peed
Brakes	SRAM Guide R [F] 160mm, [R] 160mm rotors
Brake Levers	SRAM Guide R

Cassette	SRAM PG1130, 11-36
Chain	KMC X11EL-1
Crankset	SRAM GX, 22/36
Bottom Bracket	SRAM Press Fit
Rims	Giant XCT-1 27.5 Alloy WheelSystem, [F] Boost 15×110 [R] Boost 12×148
Hubs	Giant XCT-1 27.5 Alloy WheelSystem, [F] Boost 15×110 [R] Boost 12×148
Spokes	Giant XCT-1 27.5 Alloy WheelSystem, [F] Boost 15×110 [R] Boost 12×148
Tires	[F] Schwalbe Nobby Nic 27.5×2.25″, [R] Racing Ralph 27.5×2.25″ EVO Snakeskin TL Easy

Geometrie

Size	Head Angle	Seat Angle	Top Tube	Reach	Head Tube	Stack	Chain Stay	Wheel Base	Standover Height
XS/14.5	70.0°	73.5°	55.3 cm	37.9 cm	9.5 cm	57.8 cm	43.0 cm	105.4 cm	65.7 cm
S/16	70.0°	73.0°	57.0 cm	39.2 cm	10.0 cm	58.3 cm	43.0 cm	106.9 cm	68.7 cm
M/18	70.0°	73.0°	59.0 cm	40.9 cm	11.0 cm	59.2 cm	43.0 cm	109.0 cm	72.1 cm
L/20	70.0°	73.0°	60.0 cm	41.6 cm	12.0 cm	60.1 cm	43.0 cm	110.0 cm	75.4 cm

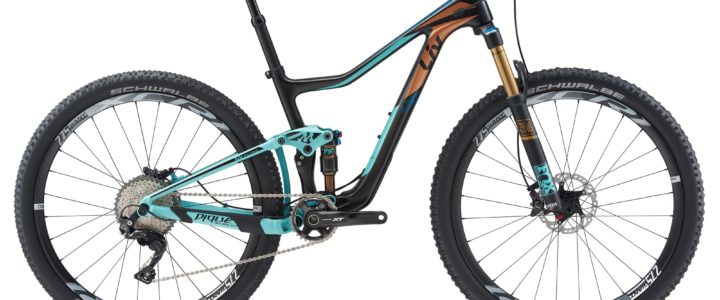

Liv MTB Pique Advanced 1 2017

Christine Laich 22. November 201622. November 201627.5-Zoll, Carbonlaufrad, Carbonräder, Carbonrahmen, Disc, Hydraulic disc, Hydraulische Scheibenbremse, Liv, MTB, Scheibenbremse, Shimano-XT, Trail, XC 0 Kommentare

KEINE SCHWÄCHE – SCHLIESST AUF, HASTET RUNTER. DIESES VIELSEITIGE XC TRAIL BIKE HAT EINE AFFINITÄT FÜR SPEED.

Kurzbeschreibung
SIZES XS, S, M
COLORS Carbon/Aqua/Yellow
FRAME Advanced -Grade Composite, 120mm Maestro Suspension w/Advanced Forged Composite Upper Rocker, ALUXX SL rear swingarm
FORK Fox Float CTD Factory, 120mm, FIT4 Damper, Boost 15x110mm Thru-Axle, Tapered steerer
SHOCK Fox Float Factory, Trunnion Mount
BRAKES Shimano Deore XT [F] 160mm, [R] 160mm rotors
DRIVETRAIN Shimano Deore XT 11-46, 1x11s
CRANKSET Shimano Deore XT, 30T
WHEELSET Giant XCR 1 27.5 Composite WheelSystem, [F] Boost 15×110 [R] Boost 12×148

Preisliste 2017

Rahmengrösse bestimmen / Körperausmessung im Preis inklusive!

Spezifikationen

Sizes	XS, S, M
Colors	Carbon/Aqua/Yellow
Frame	Advanced -Grade Composite, 120mm Maestro Suspension w/ Advanced Forged Composite Upper Rocker, ALUXX SL rear swingarm
Fork	Fox Float CTD Factory, 120mm, FIT4 Damper, Boost 15x110mm Thru-Axle, Tapered steerer
Shock	Fox Float Factory, Trunnion Mount
Handlebar	Giant Contact SL Trail, 730mm
Stem	Giant Contact SL
Seatpost	Giant Contact SL Switch-R Trail, 30.9
Saddle	Liv Contact SL, Forward
Shifters	Shimano Deore XT, 1×11
Rear Derailleur	Shimano Deore XT, 11-speed
Brakes	Shimano Deore XT [F] 160mm, [R] 160mm rotors
Brake Levers	Shimano Deore XT
Cassette	Shimano Deore XT 11-46, 11s

Chain	KMC X11EL-1
Crankset	Shimano Deore XT, 30T
Bottom Bracket	Shimano Press-Fit
Rims	Giant XCR 1 27.5 Composite WheelSystem [F] Boost 15×110 [R] Boost 12×148
Hubs	Giant XCR 1 27.5 Composite WheelSystem [F] Boost 15×110 [R] Boost 12×148
Spokes	Giant XCR 1 27.5 Composite WheelSystem [F] Boost 15×110 [R] Boost 12×148
Tires	[F] Schwalbe Nobby Nic 27.5×2.25″, [R] Racing Ralph 27.5×2.25″ EVO Snakeskin TL Easy

Geometrie

Size	Head Angle	Seat Angle	Top Tube	Reach	Head Tube	Stack	Chain Stay	Wheel Base	Standover Height
XS/14.5	70.0°	73.5°	55.3 cm	37.9 cm	9.5 cm	57.8 cm	43.0 cm	105.4 cm	65.7 cm
S/16	70.0°	73.0°	57.0 cm	39.2 cm	10.0 cm	58.3 cm	43.0 cm	106.9 cm	68.7 cm
M/18	70.0°	73.0°	59.0 cm	40.9 cm	11.0 cm	59.2 cm	43.0 cm	109.0 cm	72.1 cm
L/20	70.0°	73.0°	60.0 cm	41.6 cm	12.0 cm	60.1 cm	43.0 cm	110.0 cm	75.4 cm

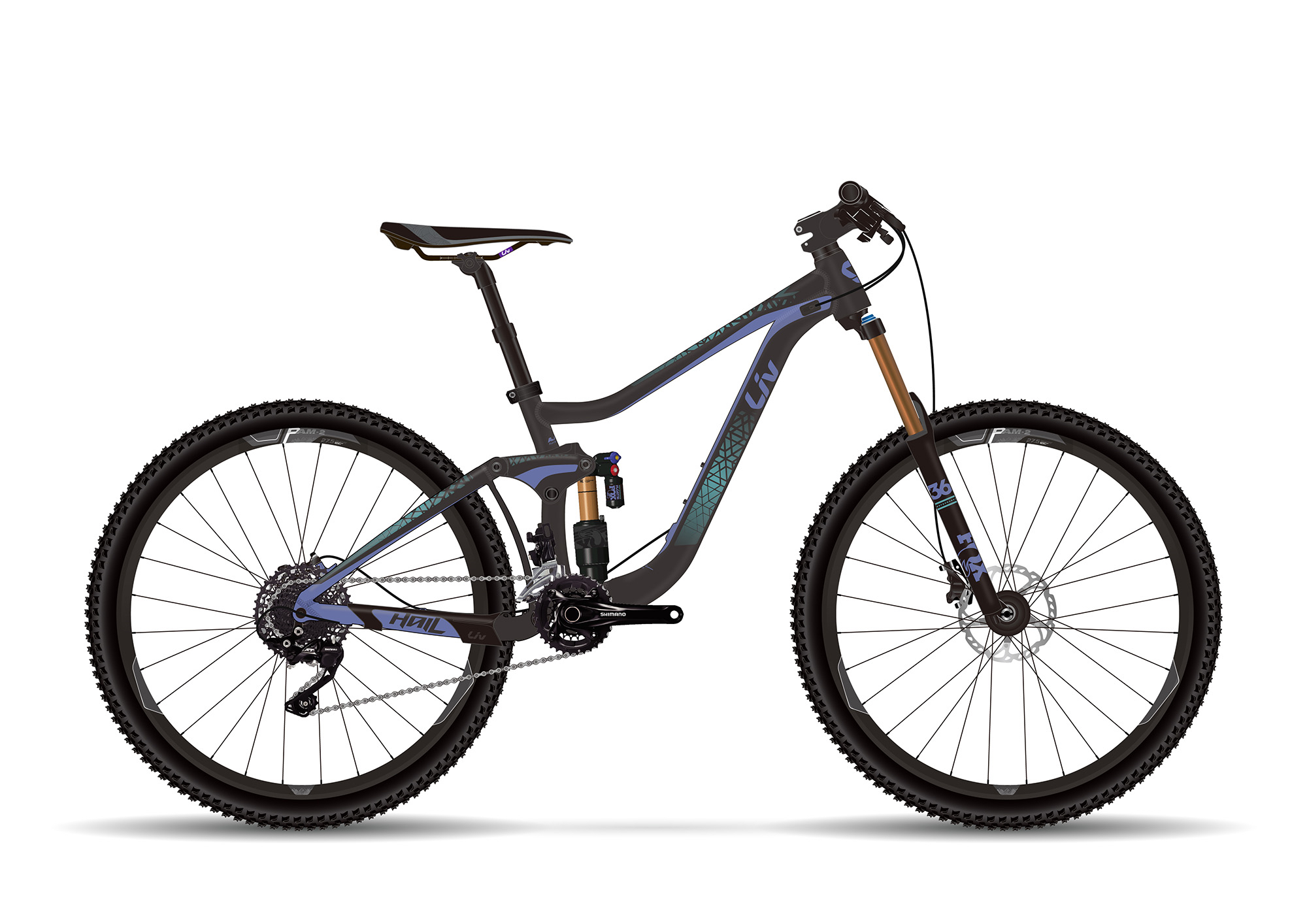

Liv MTB Hail 2 2017

Christine Laich 22. November 201627.5-Zoll, Aluminium Rahmen, Disc, Endurance, Hydraulic disc, Hydraulische Scheibenbremse, Liv, MTB, Scheibenbremse, Shimano XT/SLX, Trail 0 Kommentare

GEBAUT FÜR’S AUFLEBEN DER KOMPROMISSLOSEN TRAIL FAHRERIN IN HIGHSPEED FAHRTEN. HAIL ADVANCED BEFÄHIGT DICH IN EIN KOMPLETT NEUES LEVEL EINZUTRETEN.

Kurzbeschreibung
SIZES XS, S, M
COLORS Charcoal/Purple/Teal
FRAME Aluxx SL-Grade Aluminum, 160mm Maestro Suspension
FORK Fox 36 Talas Performance, Dual Position 130/160mm travel, FIT4 Damper, Boost 15x110mm, Tapered
SHOCK Fox Float X2 Performance, 2-position lever, trunnion mount
BRAKES Shimano M395, [F] 180mm, [R] 160mm rotors
DRIVETRAIN Shimano XT/SLX 11-36, 2x10s
CRANKSET Shimano SLX, 22/36 w/ MRP AMG V2 Guide (AL backplate)
WHEELSET Giant P-AM2, [F] Boost 15×110 [R] Boost 12×148

Preisliste 2017

Rahmengrösse bestimmen / Körperausmessung im Preis inklusive!

Spezifikationen

Sizes	XS, S, M
Colors	Charcoal/Purple/Teal
Frame	ALUXX SL-Grade Aluminum, 160mm Maestro Suspension w/ Advanced Forged Composite Upper Rocker
Fork	RockShox Yari Dual Position, 130-160mm, Maxle Stealth, Boost 15x110mm, Tapered
Shock	RockShox Deluxe R, Trunnion Mount
Handlebar	Giant Contact SL DH, 800×31.8mm
Stem	Truvativ Holzfeller
Seatpost	Giant Contact SL Switch Trail, 30.9
Saddle	Liv Contact, Upright
Shifters	SRAM NX1, 1×11
Rear Derailleur	SRAM NX1, 11-speed
Brakes	SRAM Guide R [F] 200m [R] 180mm rotors
Brake Levers	SRAM Guide R
Cassette	SRAM NX PG1130 10-42, 11s

Chain	KMC X11-1
Crankset	SRAM NX1, 30T w/ MRP AMG V2 Guide (AL Backplate)
Bottom Bracket	SRAM GXP Press-Fit
Rims	Giant P-AM2
Hubs	[F] Giant Tracker Boost 15×110, Sealed Bearing [R] Giant Tracker Boost 12×148, Sealed Bearing
Spokes	Sapim
Tires	Schwalbe Hans Dampf 27.5×2.35″ Performance Folding

Geometrie

Size	Head Angle	Seat Angle	Top Tube	Reach	Head Tube	Stack	Chain Stay	Wheel Base	Standover Height
XS/14.5	66.0°	74.0°	57.0 cm	40.4 cm	9.5 cm	57.5 cm	43.5 cm	114.4 cm	71.0 cm
S/16	66.0°	74.0°	58.5 cm	41.8 cm	10.0 cm	58.2 cm	43.5 cm	116.0 cm	71.7 cm
M/18	66.0°	74.0°	61.0 cm	43.9 cm	11.5 cm	59.6 cm	43.5 cm	118.7 cm	75.5 cm
L/20	66.0°	74.0°	62.5 cm	45.0 cm	13.0 cm	60.9 cm	43.5 cm	120.5 cm	79.5 cm

Liv MTB Hail 1 2017

Christine Laich 22. November 201627.5-Zoll, Aluminium Rahmen, Disc, Endurance, Hydraulic disc, Hydraulische Scheibenbremse, Liv, MTB, SRAM X1, Trail 0 Kommentare

GEBAUT FÜR’S AUFLEBEN DER KOMPROMISSLOSEN TRAIL FAHRERIN IN HIGHSPEED FAHRTEN. HAIL ADVANCED BEFÄHIGT DICH IN EIN KOMPLETT NEUES LEVEL EINZUTRETEN.

Kurzbeschreibung
SIZES XS, S, M, L
COLORS Dark Berry/Berry/Green
FRAME ALUXX SL-Grade Aluminum, 160mm Maestro Suspension w/ Advanced Forged Composite Upper Rocker
FORK RockShox Lyrik RC Dual Position, 130-160mm, Maxle Stealth,Boost 15x110mm, Tapered
SHOCK RockShox Deluxe R, Trunnion Mount
BRAKES SRAM Guide RS [F] 200m [R] 180mm rotors
DRIVETRAIN SRAM X1/GX1 10-42, 1x11s
CRANKSET SRAM X1, 30T w/ MRP AMG V2 Guide (AL Backplate)
WHEELSET Giant P-AM2, [F] Boost 15×110 [R] Boost 12×148

Preisliste 2017

Rahmengrösse bestimmen / Körperausmessung im Preis inklusive!

Spezifikationen

Sizes	XS, S, M
Colors	Dark Berry/Berry/Green
Frame	ALUXX SL-Grade Aluminum, 160mm Maestro Suspension w/ Advanced Forged Composite Upper Rocker
Fork	RockShox Lyrik RC Dual Position, 130-160mm, Maxle Stealth,Boost 15x110mm, Tapered
Shock	RockShox Deluxe R, Trunnion Mount
Handlebar	Giant Contact SL DH, 800×31.8mm
Stem	Truvativ Holzfeller
Seatpost	Giant Contact SL Switch Trail, 30.9
Saddle	Liv Contact, Upright
Shifters	SRAM GX1, 1×11
Rear Derailleur	SRAM X1, 11-speed
Brakes	SRAM Guide RS [F] 200m [R] 180mm rotors
Brake Levers	SRAM Guide RS
Cassette	SRAM XG1180 10-42, 11s

Chain	KMC X11EL-1
Crankset	SRAM X1, 30T w/ MRP AMG V2 Guide (AL Backplate)
Bottom Bracket	SRAM GXP Press-Fit
Rims	Giant P-AM2
Hubs	[F] Giant Tracker Boost 15×110, Sealed Bearing [R] Giant DT360 Boost 12×148, Sealed Bearing
Spokes	Sapim
Tires	Schwalbe Magic Mary 27.5×2.35″ Snakeskin, TL Easy, Trail Star [R] Schwalbe Hans Dampf 27.5×2.35″ Snakeskin, TL Easy, Pace Star

Geometrie

Size	Head Angle	Seat Angle	Top Tube	Reach	Head Tube	Stack	Chain Stay	Wheel Base	Standover Height
XS/14.5	66.0°	74.0°	57.0 cm	40.4 cm	9.5 cm	57.5 cm	43.5 cm	114.4 cm	71.0 cm
S/16	66.0°	74.0°	58.5 cm	41.8 cm	10.0 cm	58.2 cm	43.5 cm	116.0 cm	71.7 cm
M/18	66.0°	74.0°	61.0 cm	43.9 cm	11.5 cm	59.6 cm	43.5 cm	118.7 cm	75.5 cm
L/20	66.0°	74.0°	62.5 cm	45.0 cm	13.0 cm	60.9 cm	43.5 cm	120.5 cm	79.5 cm

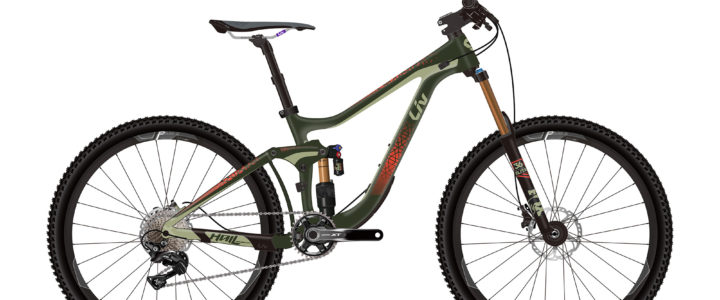

Liv MTB Hail Advanced 1 2017

Christine Laich 21. November 201622. November 201627.5-Zoll, Carbonrahmen, Disc, Gravity, Hydraulic disc, Hydraulische Scheibenbremse, Liv, MTB, Scheibenbremse, Shimano XT/SLX, Trail 0 Kommentare

GEBAUT FÜR’S AUFLEBEN DER KOMPROMISSLOSEN TRAIL FAHRERIN IN HIGHSPEED FAHRTEN. HAIL ADVANCED BEFÄHIGT DICH IN EIN KOMPLETT NEUES LEVEL EINZUTRETEN.

Kurzbeschreibung
SIZES XS, S, M
COLORS Dark Green/Olive/Red
FRAME Advanced-Grade Composite, ALUXX SL Rear swingarm, 160mm Maestro Suspension w/ Advanced Forged Composite Upper Rocker
FORK Fox 36 Talas Performance Elite, Dual Position 130-160mm Travel, FIT4 Damper, LSC Adjust, Boost 15x110mm, Tapered
SHOCK Fox Float X2 Performance Elite with 2-position Lever, Trunnion Mount
BRAKES Shimano SLX [F] 200mm, [R] 180mm rotors
DRIVETRAIN Shimano XT/SLX 11-42, 1x11s
CRANKSET Shimano Deore XT, 30T w/ MRP AMG V2 Guide (AL Backplate)
WHEELSET Giant P-AM2, [F] Boost 15×110 [R] Boost 12×148

Preisliste 2017

Rahmengrösse bestimmen / Körperausmessung im Preis inklusive!

Spezifikationen

Sizes	XS, S, M
Colors	Dark Green/Olive/Red
Frame	Advanced-Grade Composite, ALUXX SL Rear swingarm, 160mm Maestro Suspension w/ Advanced Forged Composite Upper Rocker
Fork	Fox 36 Talas Performance Elite, Dual Position 130-160mm Travel, FIT4 Damper, LSC Adjust, Boost 15x110mm, Tapered
Shock	Fox Float X2 Performance Elite with 2-position Lever, Trunnion Mount
Handlebar	Giant Contact SL DH, 800×31.8mm
Stem	Truvativ Holzfeller
Seatpost	Giant Contact SL Switch Trail, 30.9
Saddle	Liv Contact SL , Upright
Shifters	Shimano SLX, 1×11
Rear Derailleur	Shimano Deore XT, 11-speed
Brakes	Shimano SLX [F] 200mm, [R] 180mm rotors
Brake Levers	Shimano SLX
Cassette	Shimano SLX 11-42, 11s

Chain	KMC X11EL-1
Crankset	Shimano Deore XT, 30T w/ MRP AMG V2 Guide (AL Backplate)
Bottom Bracket	Shimano Press Fit
Rims	Giant P-AM2
Hubs	[F] Giant Tracker Boost 15×110, Sealed Bearing [R] Giant Tracker Boost 12×148, Sealed Bearing
Spokes	Sapim
Tires	Schwalbe Magic Mary 27.5×2.35″ Snakeskin, TL Easy, Trail Star [R] Schwalbe Hans Dampf 27.5×2.35″ Snakeskin, TL Easy, Pace Star

Geometrie

Size	Head Angle	Seat Angle	Top Tube	Reach	Head Tube	Stack	Chain Stay	Wheel Base	Standover Height
XS/14.5	66.0°	74.0°	57.0 cm	40.4 cm	9.5 cm	57.5 cm	43.5 cm	114.4 cm	71.0 cm
S/16	66.0°	74.0°	58.5 cm	41.8 cm	10.0 cm	58.2 cm	43.5 cm	116.0 cm	71.7 cm
M/18	66.0°	74.0°	61.0 cm	43.9 cm	11.5 cm	59.6 cm	43.5 cm	118.7 cm	75.5 cm
L/20	66.0°	74.0°	62.5 cm	45.0 cm	13.0 cm	60.9 cm	43.5 cm	120.5 cm	79.5 cm

Giant MTB Hybrid Dirt-E+ 2 2017

Christine Laich 18. November 201629. November 2016250W, 27.5-Zoll, 80Nm, Aluminium Rahmen, Cresta Elektro-MTB, Disc, Endurance, Giant, Giant SyncDrive Sport, Hardtail, Hybrid, Hydraulic disc, Hydraulische Scheibenbremse, MTB, Scheibenbremse, Shimano Deore, Trail 0 Kommentare

MIT SELBSTBEWUSSTEM TRAIL HANDLING UND INTEGRIERTER POWER, FÄHRST DU NOCH ANSPRUCHSVOLLERES GELÄNDE UND VERLÄNGERST DAS ABENTEUER.

Dieses Bike bietet die vertraute Zuverlässigkeit eines Hardtail-Mountainbikes und zahlreiche Extras, die es trailtauglich machen. Dank seiner schnittigen Geometrie, hervorragender Gewichtsverteilung und eingebauter Energie wirst du mit diesem Bike Trails erforschen, die du dir nie hättest vorstellen können.

Kurzbeschreibung
SIZES S, M, L
COLORS Black/White
FRAME ALUXX SL-grade aluminium, for integrated EnergyPak system, tapered head tube, internal cable routing, integrated carrier, kickstand & fender mounts
FORK SR Suntour XCR 32 RL-R 120mm travel, 15QR, remote lockout
BRAKES Shimano M315 hydraulic disc, 180mm rotors
DRIVETRAIN Shimano Deore 12-36, 2x9s
CRANKSET Custom forged crankset by FSA, 28/38
WHEELSET Giant GX03 Double Wall 27,5″, [F] 15×110 [R] QR 135
EXTRAS Giant EnergyPak 4A fast charger
MOTOR Giant SyncDrive Sport, 80Nm, 250W
BATTERY Giant EnergyPak400x

Preisliste 2017

Rahmengrösse bestimmen / Körperausmessung im Preis inklusive!

Spezifikationen

Sizes	S, M, L, XL
Colors	Fresh Green Gloss, Black/White
Frame	ALUXX SL-grade aluminium, for integrated EnergyPak system, tapered head tube, internal cable routing, integrated carrier, kickstand & fender mounts
Fork	SR Suntour XCR 32 RL-R 120mm travel, 15QR, Tapered steerer, remote lockout
Handlebar	Giant Connect Trail, 730×31.8mm
Stem	Giant Connect
Seatpost	Giant Connect
Saddle	Giant Contact, Neutral
Pedals	Aluminium Platform
Shifters	Shimano Acera M3000, 2×9
Front Derailleur	Shimano Deore
Rear Derailleur	Shimano Deore Shadow, 9-speed
Brakes	Shimano M315 hydraulic disc, 180mm rotors
Brake Levers	Shimano M315
Cassette	Shimano HG 300 12-36T
Chain	KMC X.9e, e-bike specific

Crankset	Custom forged crankset by FSA, 28/38
Rims	Giant GX03 Double Wall 27,5″
Hubs	Giant Tracker, sealed cartridge bearings [F] 15mm Thru-Axle, [R] 135mm QR
Spokes	Stainless
Tires	[F] Schwalbe Tough Tom, 27.5×2.35 Kevlar Guard, [R] Rapid Rob 27.5×2.25 Kevlar Guard
Extras	Giant EnergyPak 4A fast charger
Motor	Giant SyncDrive Sport, 80Nm, 250W
Sensors	Giant PedalPlus 4-sensor technology
Display	Giant RideControl Charge, grip launch control with walk assist, mini USB charger
Battery	Giant EnergyPak400, 36V 11.3Ah Rechargeable Lithium-Ion

Geometrie

Size	Head Angle	Seat Angle	Top Tube	Reach	Head Tube	Stack	Chain Stay	Wheel Base	Standover Height
S	69.0°	72.5°	57.0 cm	38.5 cm	13.5 cm	61.1 cm	46.0 cm	105.9 cm	74.5 cm
M	69.0°	72.5°	59.0 cm	40.2 cm	13.5 cm	61.5 cm	46.0 cm	107.4 cm	77.4 cm
L	69.0°	72.5°	61.0 cm	41.7 cm	15.5 cm	63.0 cm	46.0 cm	109.2 cm	80.7 cm
XL	69.0°	72.5°	63.0 cm	43.3 cm	17.0 cm	64.4 cm	46.0 cm	111.7 cm	82.8 cm

Giant MTB Hybrid Dirt-E+ 1 2017

Christine Laich 18. November 201618. November 2016250W, 27.5-Zoll, 80Nm, Aluminium Rahmen, Cresta Elektro-MTB, Disc, Endurance, Giant, Giant SyncDrive Sport, Hardtail, Hybrid, Hydraulic disc, Hydraulische Scheibenbremse, MTB, Scheibenbremse, Shimano XT/Deore, Trail 0 Kommentare

MIT SELBSTBEWUSSTEM TRAIL HANDLING UND INTEGRIERTER POWER, FÄHRST DU NOCH ANSPRUCHSVOLLERES GELÄNDE UND VERLÄNGERST DAS ABENTEUER.

Kurzbeschreibung
SIZES S, M, L
COLORS Anthracite/Red
FRAME ALUXX SL-grade aluminium, for integrated EnergyPak system, tapered head tube, internal cable routing, integrated carrier, kickstand & fender mounts
FORK SR Suntour Raidon 32 RL-R Air, 120mm travel, 15QR, remote lockout
BRAKES Shimano M447 hydraulic disc, 180mm rotors
DRIVETRAIN Shimano XT/Deore 11-36, 2x10s
CRANKSET Custom forged crankset by FSA, 28/38
WHEELSET Giant GX03 Double Wall 27,5″, [F] 15×110 [R] QR 135
EXTRAS Giant EnergyPak 4A fast charger
MOTOR Giant SyncDrive Sport, 80Nm, 250W
BATTERY Giant EnergyPak500

Preisliste 2017

Rahmengrösse bestimmen / Körperausmessung im Preis inklusive!

Spezifikationen

Sizes	S, M, L, XL
Colors	Anthracite/Red, Khaki Matte
Frame	ALUXX SL-grade aluminium, for integrated EnergyPak system, tapered head tube, internal cable routing, integrated carrier, kickstand & fender mounts
Fork	SR Suntour Raidon 32 RL-R Air, 120mm travel, Tapered steerer, 15QR, remote lockout
Handlebar	Giant Connect Trail, 730×31.8mm
Stem	Giant Connect
Seatpost	Giant Connect
Saddle	Giant Contact, Neutral
Pedals	Aluminium Platform
Shifters	Shimano Deore, 2×10
Front Derailleur	Shimano Deore
Rear Derailleur	Shimano Deore XT Shadow+, 10-speed
Brakes	Shimano M447 hydraulic disc, 180mm rotors
Brake Levers	Shimano M506 i-spec
Cassette	Shimano HG50, 11-36 T, 10-sp
Chain	KMC X.10e, e-bike specific

Crankset	Custom forged crankset by FSA, 28/38
Rims	Giant GX03 Double Wall 27,5″
Hubs	Giant Tracker, sealed cartridge bearings [F] 15mm Thru-Axle, [R] 135mm QR
Spokes	Stainless
Tires	[F] Schwalbe Nobby Nic, 27.5×2.35, Performance, SnakeSkin, Folding, [R] Rocket Ron, 27.5×2.25 Dual Compound, SnakeSkin, Folding
Extras	Giant EnergyPak 4A fast charger
Motor	Giant SyncDrive Sport, 80Nm, 250W
Sensors	Giant PedalPlus 4-sensor technology
Display	Giant RideControl EVO, grip launch control with walk assist, mini USB charger
Battery	Giant EnergyPak500, 36V 13.8Ah Rechargeable Lithium-Ion

Geometrie

Size	Head Angle	Seat Angle	Top Tube	Reach	Head Tube	Stack	Chain Stay	Wheel Base	Standover Height
S	69.0°	72.5°	57.0 cm	38.5 cm	13.5 cm	61.1 cm	46.0 cm	105.9 cm	74.5 cm
M	69.0°	72.5°	59.0 cm	40.2 cm	13.5 cm	61.5 cm	46.0 cm	107.4 cm	77.4 cm
L	69.0°	72.5°	61.0 cm	41.7 cm	15.5 cm	63.0 cm	46.0 cm	109.2 cm	80.7 cm
XL	69.0°	72.5°	63.0 cm	43.3 cm	17.0 cm	64.4 cm	46.0 cm	111.7 cm	82.8 cm

Giant MTB Hybrid Dirt-E+ 0.5 2017

MIT SELBSTBEWUSSTEM TRAIL HANDLING UND INTEGRIERTER POWER, FÄHRST DU NOCH ANSPRUCHSVOLLERES GELÄNDE UND VERLÄNGERST DAS ABENTEUER.

Kurzbeschreibung
SIZES S, M, L
COLORS Anthracite Green
FRAME ALUXX SL-grade aluminium, for integrated EnergyPak system, tapered head tube, internal cable routing, integrated carrier, kickstand & fender mounts
FORK Rock Shox Recon Silver RL, 120mm travel,15QR, remote lockout
BRAKES Shimano Deore M616 hydraulic disc, [F] 200mm, [R] 180mm rotors
DRIVETRAIN Shimano XT/SLX 11-40T, 2x11s
CRANKSET Custom forged crankset by FSA, 28/38
WHEELSET Giant GX03 Double Wall 27,5″, [F] 15×110 [R] QR 135
EXTRAS Giant EnergyPak 4A fast charger
MOTOR Giant SyncDrive Sport, 80Nm, 250W
BATTERY Giant EnergyPak500

Preisliste 2017

Rahmengrösse bestimmen / Körperausmessung im Preis inklusive!

Spezifikationen

Sizes	S, M, L, XL
Colors	Anthracite Green
Frame	ALUXX SL-grade aluminium, for integrated EnergyPak system, tapered head tube, internal cable routing, integrated carrier, kickstand & fender mounts
Fork	Rock Shox Recon Silver RL, 120mm travel, Tapered steerer,15QR, remote lockout
Handlebar	Giant Connect Trail, 730×31.8mm
Stem	Giant Connect
Seatpost	TranzX YSP-03 dropper seatpost
Saddle	Giant Contact, Neutral
Pedals	Aluminium Platform
Shifters	Shimano SLX, 2×11
Front Derailleur	Shimano SLX
Rear Derailleur	Shimano Deore XT Shadow+, 11-speed
Brakes	Shimano Deore M616 hydraulic disc, [F] 200mm, [R] 180mm rotors
Brake Levers	Shimano M616 i-spec
Cassette	Shimano HG-M7000, 11-40T, 11-sp
Chain	KMC X.11e, e-bike specific

Crankset	Custom forged crankset by FSA, 28/38
Rims	Giant GX03 Double Wall 27,5″
Hubs	Giant Tracker, sealed cartridge bearings [F] 15mm Thru-Axle, [R] 135mm QR
Spokes	Stainless
Tires	[F] Schwalbe Nobby Nic, 27.5×2.35, Performance, SnakeSkin, Folding, [R] Rocket Ron, 27.5×2.25 Dual Compound, SnakeSkin, Folding
Extras	Giant EnergyPak 4A fast charger
Motor	Giant SyncDrive Sport, 80Nm, 250W
Sensors	Giant PedalPlus 4-sensor technology
Display	Giant RideControl EVO, grip launch control with walk assist, mini USB charger
Battery	Giant EnergyPak500, 36V 13.8Ah Rechargeable Lithium-Ion

Geometrie

Size	Head Angle	Seat Angle	Top Tube	Reach	Head Tube	Stack	Chain Stay	Wheel Base	Standover Height
S	69.0°	72.5°	57.0 cm	38.5 cm	13.5 cm	61.1 cm	46.0 cm	105.9 cm	74.5 cm
M	69.0°	72.5°	59.0 cm	40.2 cm	13.5 cm	61.5 cm	46.0 cm	107.4 cm	77.4 cm
L	69.0°	72.5°	61.0 cm	41.7 cm	15.5 cm	63.0 cm	46.0 cm	109.2 cm	80.7 cm
XL	69.0°	72.5°	63.0 cm	43.3 cm	17.0 cm	64.4 cm	46.0 cm	111.7 cm	82.8 cm

Giant MTB Hybrid Full-E+ 2 2017

Christine Laich 18. November 201618. November 2016250W, 27.5-Zoll, 80Nm, Aluminium Rahmen, Cresta Elektro-MTB, Disc, Endurance, Giant, Giant SyncDrive Sport, Hybrid, Hydraulic disc, Hydraulische Scheibenbremse, MTB, Scheibenbremse, Shimano SLX/Deore, Trail 0 Kommentare

BESIEGE AUFSTIEGE UND VERLÄNGERE DEIN OFF-ROAD ABENTEUER MIT EINER VOLLGEFEDERTEN TRAIL MASCHINE DIE DICH NOCH WEITER BRINGT.

Die Kraft weiter zu fahren. Der Start in eine neue, gesunde Pendler Routine. Die Suche nach Abenteuer auf abgelegenen Bergwegen. Giant’s neue E-Bike Palette kann dir helfen dich auf Strassen, Pfade oder Wege zu begeben.

Kurzbeschreibung
SIZES S, M, L
COLORS Black/White/Grey
FRAME ALUXX SL-grade aluminum, 140mm Maestro suspension system, ‚Boost‘ 148×12
FORK SR Suntour Aion 34 LO-R 27.5+ 140mm travel, Lockout, Boost 110x15mm Quick-Loc thru-axle
SHOCK SR Suntour UnAir LO-R, Trunnion mount, custom tuned
BRAKES Shimano M447, 203mm rotors
DRIVETRAIN Shimano SLX/Deore 11-36T, 2x10s
CRANKSET Custom forged crankset by FSA, 28/38, ‚Boost‘ 4-bolt 104BCD Yamaha specific spider
WHEELSET Giant GE35, 584x35mm, TL ready, [F] Boost 15×110 [R] Boost 12×148
EXTRAS Giant EnergyPak 4A fast charger
MOTOR Giant SyncDrive Sport, 80Nm, 250W
BATTERY Giant EnergyPak400

Preisliste 2017

Rahmengrösse bestimmen / Körperausmessung im Preis inklusive!

Spezifikationen

Sizes	S, M, L, XL
Colors	Black/White/Grey, Black/Green
Frame	ALUXX SL-grade aluminum, 140mm Maestro suspension system, ‚Boost‘ 148x12QR
Fork	SR Suntour Aion 34 LO-R 27.5+ 140mm travel, Tapered steerer, Lockout, Boost 110x15mm Quick-Loc thru-axle
Shock	SR Suntour UnAir LO-R, 185×52,5mm Trunnion mount, custom tuned
Handlebar	Giant Connect Trail, 730×31.8mm
Stem	Giant Connect
Seatpost	Giant Connect
Saddle	Giant Contact, Neutral
Pedals	Aluminum Platform
Shifters	Shimano Deore 2x10sp
Front Derailleur	Shimano Deore
Rear Derailleur	Shimano SLX Shadow
Brakes	Shimano M447, 203mm rotors
Brake Levers	Shimano M506
Cassette	Shimano HG50-10 11-36T, 10-sp
Chain	KMC X.10e, e-bike specific
Crankset	Custom forged crankset by FSA, 28/38T, ‚Boost‘ 4-bolt 104BCD Yamaha specific spider

Rims	Giant GE35, 584x35mm Sleeve Joint aluminum, TL ready
Hubs	Giant Tracker Boost, Sealed Cartridge bearing, IS 6-bolt, [F] 100×15 [R] 148x12mm Thru-axle
Spokes	Stainless
Tires	Schwalbe Rocket Ron, 27.5×2.55(584x65mm), Performance Foldable, SnakeSkin
Extras	Giant EnergyPak 4A fast charger
Motor	Giant SyncDrive Sport, 80Nm, 250W
Sensors	Giant PedalPlus 4-sensor technology
Display	Giant RideControl Charge, grip launch control with walk assist, mini USB charger
Battery	Giant EnergyPak400, 36V 11.3Ah Rechargeable Lithium-Ion

Geometrie

Size	Head Angle	Seat Angle	Top Tube	Reach	Head Tube	Stack	Chain Stay	Wheel Base	Standover Height
S	67.0°	73.5°	56.5 cm	37.8 cm	12.5 cm	61.0 cm	46.3 cm	114.3 cm	76.8 cm
M	67.0°	73.5°	59.0 cm	40.3 cm	12.5 cm	61.0 cm	46.3 cm	116.8 cm	76.9 cm
L	67.0°	73.5°	61.0 cm	41.8 cm	14.0 cm	62.3 cm	46.3 cm	118.9 cm	80.6 cm
XL	67.0°	73.5°	63.5 cm	43.8 cm	16.0 cm	64.2 cm	46.3 cm	121.7 cm	83.2 cm

Giant MTB Hybrid Full-E+ 1 2017

Christine Laich 18. November 201618. November 2016250W, 27.5-Zoll, 80Nm, Aluminium Rahmen, Disc, E-Bike, Endurance, Giant, Giant SyncDrive Sport, Hybrid, Hydraulic disc, Hydraulische Scheibenbremse, MTB, Scheibenbremse, Trail 0 Kommentare

BESIEGE AUFSTIEGE UND VERLÄNGERE DEIN OFF-ROAD ABENTEUER MIT EINER VOLLGEFEDERTEN TRAIL MASCHINE DIE DICH NOCH WEITER BRINGT.

Kurzbeschreibung
SIZES S, M, L
COLORS Black/Blue/Green
FRAME ALUXX SL-grade aluminum, 140mm Maestro suspension system, ‚Boost‘ 148×12
FORK Fox 34 Float Performance 27.5+ 140mm, 2-position Grip Damper, Boost 110x15QR
SHOCK Fox Float Performance DPS, 3position lever, Extra Volume sleeve, Trunnion mount
BRAKES Shimano M615, 203mm rotors
DRIVETRAIN Shimano XT/SLX 11-40T, 2x11s
CRANKSET Custom forged crankset by FSA, 28/38, ‚Boost‘ 4-bolt 104BCD Yamaha specific spider
WHEELSET Giant GE35, 584x35mm, TL ready, [F] Boost 15×110 [R] Boost 12×148
EXTRAS Giant EnergyPak 4A fast charger
MOTOR Giant SyncDrive Sport, 80Nm, 250W
BATTERY Giant EnergyPak500

Preisliste 2017

Rahmengrösse bestimmen / Körperausmessung im Preis inklusive!

Spezifikationen

Sizes	S, M, L, XL
Colors	Black/Red/Orange, Black/Blue/Green
Frame	ALUXX SL-grade aluminum, 140mm Maestro suspension system, ‚Boost‘ 148x12QR
Fork	Fox 34 Float Performance 27.5+ 140mm, 2-position Grip Damper, Tapered steerer Boost 110x15QR
Shock	Fox Float Performance DPS, 3position lever, Extra Volume sleeve, 185×52.5mm Trunnion mount, custom tuned
Handlebar	Giant Connect Trail, 730×31.8mm
Stem	Giant Connect
Seatpost	Giant Contact SL Switch Trail, remote height adjust
Saddle	Giant Contact, Neutral
Pedals	Aluminum Platform
Shifters	Shimano SLX 2×11-sp
Front Derailleur	Shimano SLX
Rear Derailleur	Shimano Deore XT Shadow+
Brakes	Shimano M615, 203mm rotors
Brake Levers	Shimano M615
Cassette	Shimano HG-M7000, 11-40T, 11-sp
Chain	KMC X.11e EcoProteQ
Crankset	Custom forged crankset by FSA, 28/38T, ‚Boost‘ 4-bolt 104BCD Yamaha specific spider

Rims	Giant GE35, 584x35mm Sleeve Joint aluminum, TL ready
Hubs	Giant Tracker Boost, Sealed Cartridge bearing, IS 6-bolt, [F] 110×15 [R] 148x12mm Thru-axle
Spokes	Stainless
Tires	Schwalbe Rocket Ron, 27.5×2.55(584×65), Evo Foldable, SnakeSkin sidewall, [F] Trail star compound [R] Pace star compound
Extras	Giant EnergyPak 4A fast charger
Motor	Giant SyncDrive Sport, 80Nm, 250W
Sensors	Giant PedalPlus 4-sensor technology
Display	Giant RideControl EVO, grip launch control with walk assist, mini USB charger
Battery	Giant EnergyPak500, 36V 13.8Ah Rechargeable Lithium-Ion

Geometrie

Size	Head Angle	Seat Angle	Top Tube	Reach	Head Tube	Stack	Chain Stay	Wheel Base	Standover Height
S	67.0°	73.5°	56.5 cm	37.8 cm	12.5 cm	61.0 cm	46.3 cm	114.3 cm	76.8 cm
M	67.0°	73.5°	59.0 cm	40.3 cm	12.5 cm	61.0 cm	46.3 cm	116.8 cm	76.9 cm
L	67.0°	73.5°	61.0 cm	41.8 cm	14.0 cm	62.3 cm	46.3 cm	118.9 cm	80.6 cm
XL	67.0°	73.5°	63.5 cm	43.8 cm	16.0 cm	64.2 cm	46.3 cm	121.7 cm	83.2 cm
